COSMOS recently funded improving the versatility and the strong-motion format outputs of the Converter that was originally developed at UC Santa Barbara in 2006. The current version of the Java-based application (Beta mode) can input strong-motion records in the formats of four major strong motion networks and COSMOS, split the record into single-channels if necessary, and then generate output files converted to a user-selected format. A description of the tool and the requirements for its use are provided here. The Converter is available for download at the link below:

Download the Converter

Warning: The Converter is in beta mode and some limited testing has been done, but COSMOS makes no claims for the accuracy of the files at this time. Please check exported files for accuracy, and please let us know at cesmd@strongmotioncenter.org if you have any problems, have found any errors, or would like to suggest any improvements.

Description of the Converter

The Converter is a Java-based graphical user interface (GUI) designed to visualize and convert strong-motion data from the following formats:

• USGS SMC (unprocessed and processed)
• CGS (unprocessed and processed)
• COSMOS (unprocessed and processed)
• NIED (K-NET and KiK-Net) Japan (unprocessed)
• New Zealand GNS (unprocessed and processed)
• University of Chile - RENADIC

The input format is specified by the user (i.e., no auto-detection). The output format options are:

• Excel spreadsheet: One spreadsheet per channel per physical parameter that includes parametric data about the earthquake, site and instrument, the strong-motion time series data in a single column, and a plot of the channel time history.
• Matlab file: One file per channel per physical parameter that includes a script for plotting time histories, along with parametric data and strong-motion data in a single column. The file can be opened by MatLab.
• COSMOS XML format: Includes earthquake parameters and data in XML format.
• COSMOS VDC Tagged format: Includes earthquake parameters and data in COSMOS VDC Tagged format (USGS Open-File Report 2008-1327).

The improved COSMOS Converter has an integrated splitter to open CGS and New Zealand data files that contain one or more channels and split them into individual files. The output is one file per channel per physical parameter (acceleration, velocity or displacement) and type of spectra (Sa, Sv, Sd, and PSA or PSV) as well as corresponding plot files.

Getting Started

The COSMOS converter is a Java program which can be launched by either double clicking on the file icon or by issuing “Java -jar COSMOS_Converter.jar” in a command line.

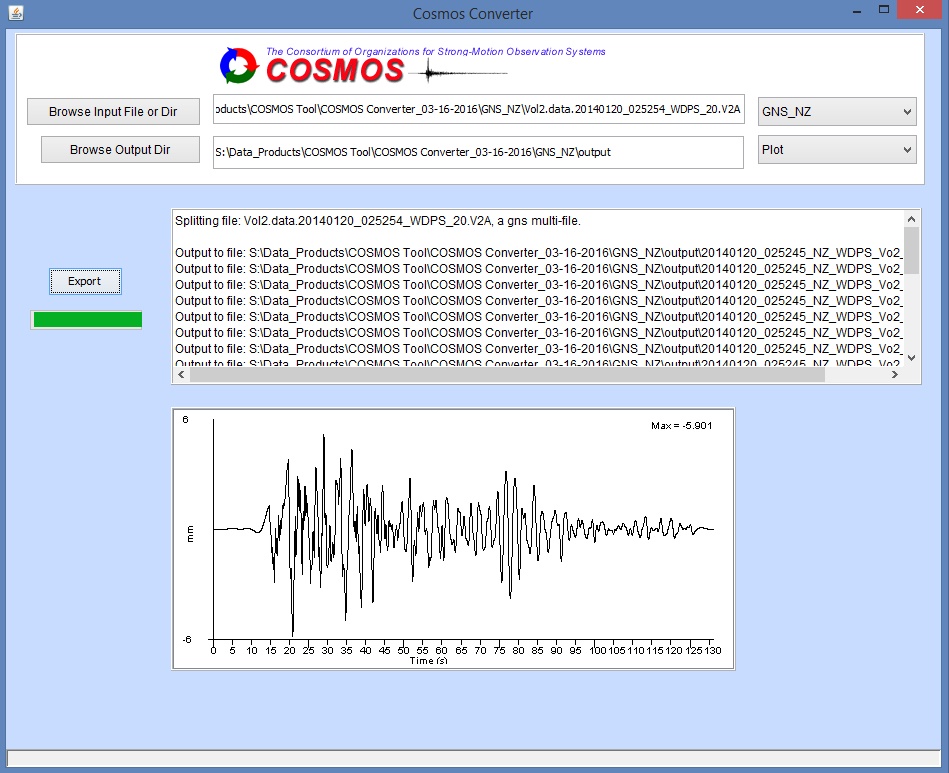

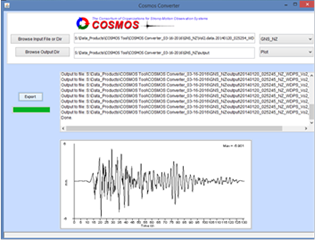

This GUI is easy to use: a user simply navigates to a folder on a locally-mounted drive containing the input data files, specifies the output directory, and then clicks the export button to generate the outputs.

COSMOS Converter Outputs

Examples of the COSMOS Converter outputs:

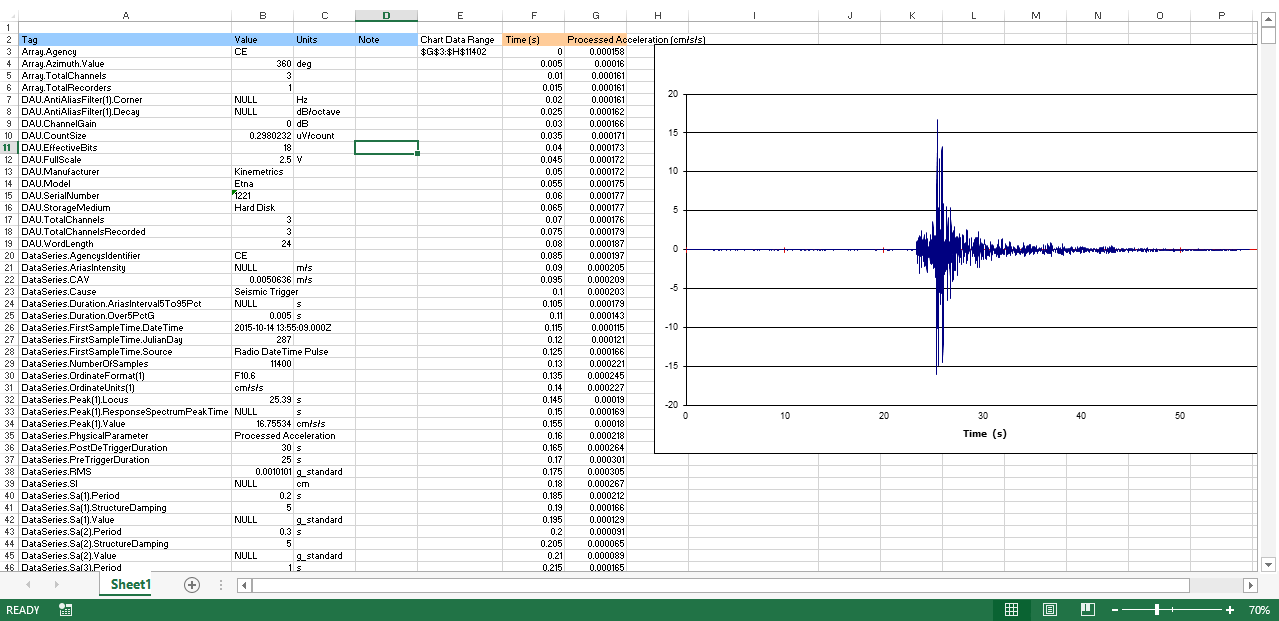

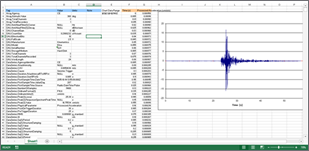

Excel Spreadsheet:

One spreadsheet per channel of data per physical parameter.  Each spreadsheet contains the information about the record, the time series in a single column, and a plot of the time history.

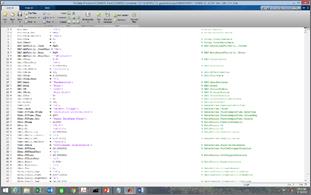

Matlab File:

One M file per channel per physical parameter. Record metadata are included, as well as time series in a single column. The MATLAB file also contains a script for generating a plot of the time series.

COSMOS XML File:

One file per channel of data in XML format according to the Virtual Data Center Tagged format.

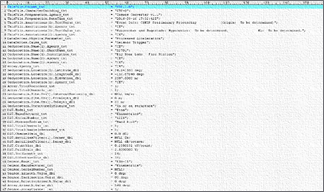

COSMOS VDC Tagged-format File:

One file per channel of data in the Virtual Data Center Tagged format.

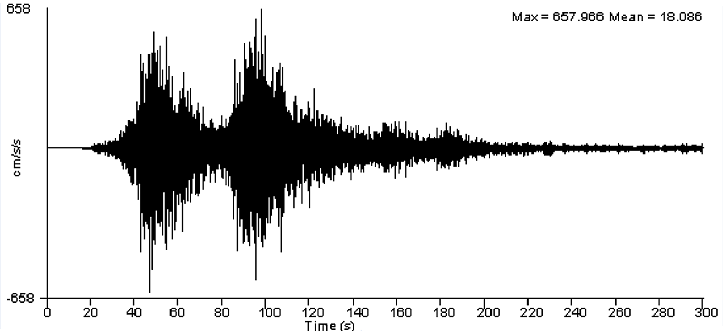

Time Series and Spectral Plots:

One file of Time-series plot per channel of data is saved in a local folder if the user selects the plot output. Also, plot files of spectra are saved in a local folder.

Software Requirements:

Platforms Tested:

MS Windows, version 7 and later; Linux, Fedora 16.

Java 1.8 or later is required.

Contact Us:

For questions and comments regarding the Beta version of the COSMOS Converter, please email us at:

cesmd@strongmotioncenter.org
