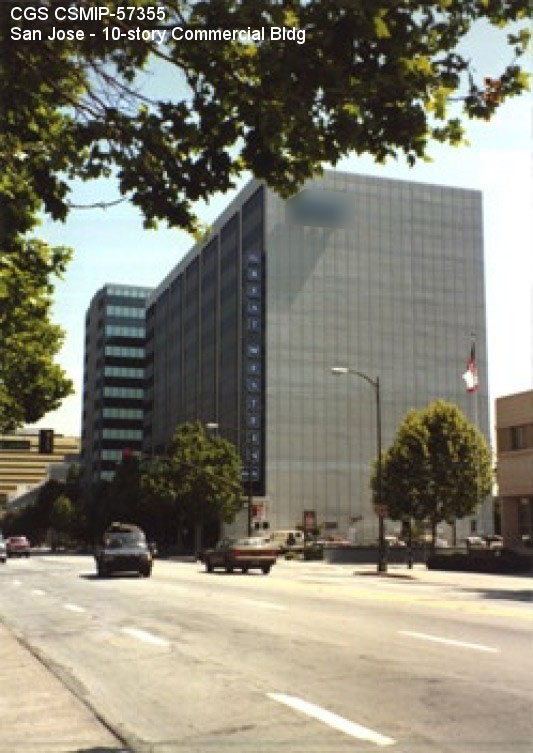

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| San Jose - 10-story Commercial Bldg |
| CGS - CSMIP Station 57355 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.3377 N |
| Longitude | 121.8942 W |
| Elevation (m) | 26 |
| Site Geology | Deep alluvium |
| Vs30 (m/sec) | 273 (inferred) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 10/1 |
| Plan Shape | Rectangular |
| Base Dimensions | 82' x 190' |
| Typical Floor Dimensions | Same as base dimensions |
| Design Date | 1964 |
| Instrumentation | 1979. 13 accelerometers, on 4 levels in the building. |
| Vertical Load Carrying System | RC floor slabs supported by RC pan joists and RC frame. |
| Lateral Force Resisting System | End RC shear walls in transverse direction; moment resistant RC frame in longitudinal direction. |
| Foundation Type | RC mat foundation |
| Remarks | -- |
