Information for Strong-Motion Station
Stanford - 3-story School Bldg
CGS - CSMIP Station 58593
Earthquakes recorded by this station

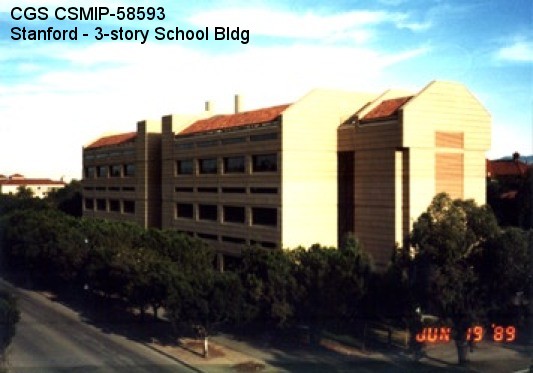

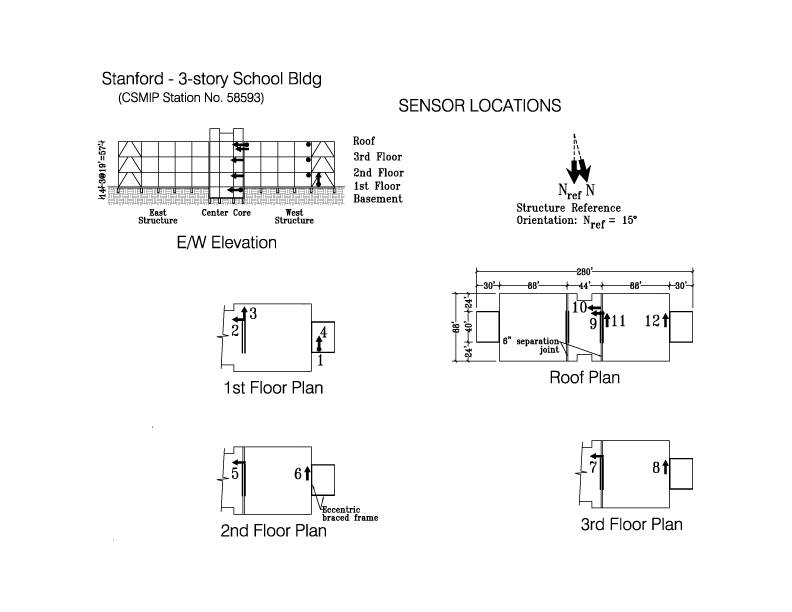

(Station Photograph - click to enlarge)(Sensor Layout - click to see PDF File)

Latitude 37.4318 N
Longitude 122.1719 W
Elevation (m) 23
Site Geology Deep alluvium
Vs30 (m/sec) 380 (measured)
Site Class C/D
Remarks/Notes Site information sources

No. of Stories above/below ground3/partial basement
Plan ShapeRectangular
Base Dimensions280'x88' (Entire Bldg.); 88'x88' (Instrum. Bldg.)
Typical Floor Dimensions280'x88' (Entire Bldg.); 88'x88' (Instrum. Bldg.)
Design Date1984
Instrumentation1990. 12 accelerometers, on 4 levels in the building. 3 accelerometers at a reference free-field site.

Vertical Load Carrying SystemConcrete slab (2" to 4" thick) on steel deck with welded metal studs, supported by distributed steel frame. The building is divided into 3 structures (east and west structures and center core) on a common base.
Lateral Force Resisting SystemEccentric braced steel frames (EBF) with welded moment connections. In the longitudinal direction the EBF's are at the ends of the building. In the transverse direction the EBF's are at the ends of the core, east and west structures.
Foundation TypeConcrete drilled piers (24" & 30" diameter, 15' to 26' deep) under each column and supporting a perimeter grade beam & slab on grade.
RemarksThe building is only 3-stories high, but each story is more than 19' high and it can be considered as a mid-rise structure, rather than a low-rise. The building was designed in accordance with the 1984 UBC. Only the west structure is fully instrumented.
