| CESMD |
| Information for Strong-Motion Station |
| San Francisco; Chevron Bldg; Structure Array 1 |
| NSMP Station 1446 |
| Earthquakes recorded by this station |
| |

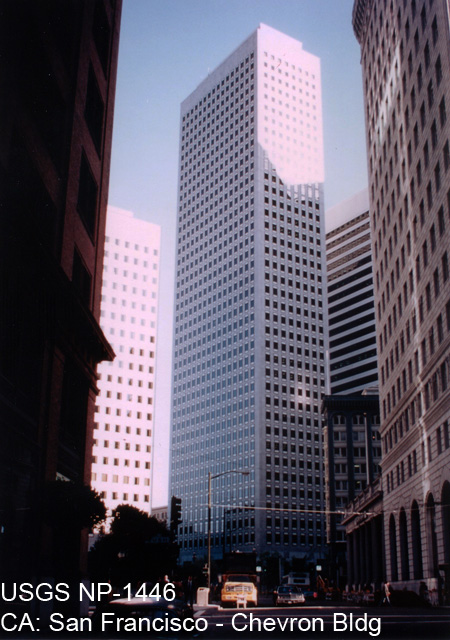

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.7896 N |
| Longitude | 122.4004 W |
| Elevation (m) | 7 |
| Site Geology | |
| Vs30 (m/sec) | |
| Site Class |
| No. of Stories above/below ground | 41 (including X-braced penthouse)/2 |
| Plan Shape | rectangular |
| Base Dimensions | 155 ftx95 ft |
| Typical Floor Dimensions | 155 ftx82 ft |
| Design Date | 1973 |
| Instrumentation | 1975, 24 accelerometers on seven levels of building. |
| Vertical Load Carrying System | Cellular metal decking with concrete fill supported by steel floor beams and steel columns |
| Lateral Force Resisting System | Moment resistant steel frame |
| Foundation Type | Precast piles |
| Remarks | -- |
