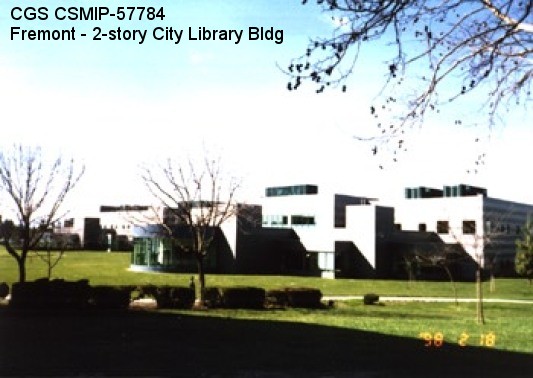

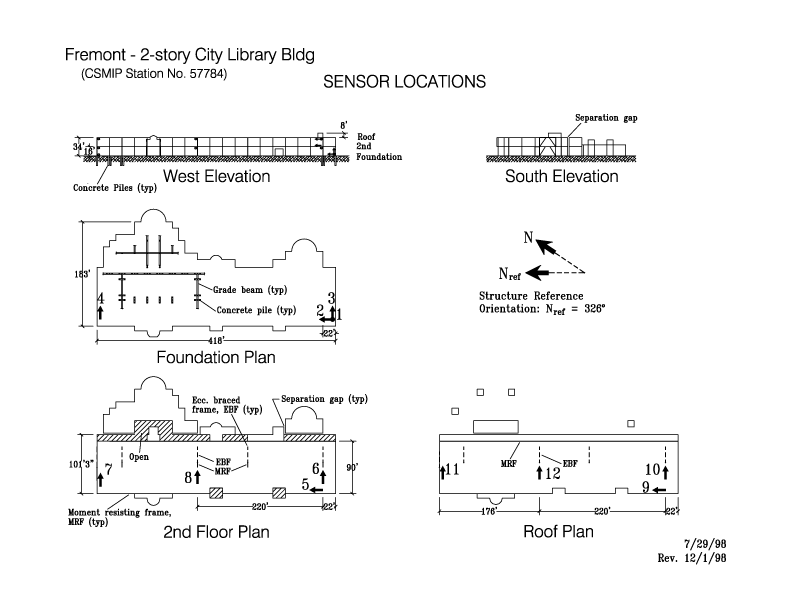

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| Fremont - 2-story City Library Bldg |
| CGS - CSMIP Station 57784 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.5504 N |
| Longitude | 121.9713 W |
| Elevation (m) | 16 |
| Site Geology | Deep alluvium |
| Vs30 (m/sec) | 377 (measured) |
| Site Class | C/D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 2/0 |
| Plan Shape | Irregular |
| Base Dimensions | 183' x 418' |
| Typical Floor Dimensions | Rectangular 101' x 418' |
| Design Date | 1986-87 |
| Instrumentation | 1999. 12 accelerometers, on 3 levels in the building. |
| Vertical Load Carrying System | 3.5" thick concrete over 3" metal deck at the 2nd floor. 2.5" thick concrete over 2" metal deck at the roof. Metal deck is supported by steel frames. Design Live Load is 20 psf for roof and 125 psf for 2nd floor slab. |
| Lateral Force Resisting System | Moment-resisting steel frames in the longtidinal direction. Eccentric braced and moment-resisting steel frames in the transverse direction. |
| Foundation Type | 18" to 36" diameter concrete piers, 15' to 21' long. Columns are supported by groups of 1 to 4 piers. Pier caps are interconnected by grade beams. |
| Remarks | This building is located about 60' west of the Hayward Fault. It was designed as per 1985 UBC. |
