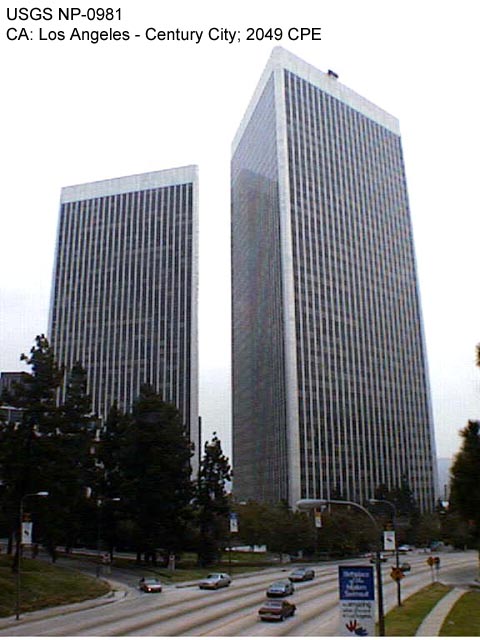

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| Los Angeles; Century City, 2049 CPE |
| NSMP Station 0981 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 34.0580 N |
| Longitude | 118.4120 W |
| Elevation (m) | tbd |
| Site Geology | |
| Vs30 (m/sec) | |
| Site Class |
| No. of Stories above/below ground | 44/2 |
| Plan Shape | triangular |
| Base Dimensions | 255 ftx255 ftx 255 ft |
| Typical Floor Dimensions | 255 ftx255 ftx 255 ft |
| Design Date | 1973 |
| Instrumentation | 1975, 14 accelerometers on six levels of building. |
| Vertical Load Carrying System | 4.5 inches thick concrete slab with and without steel decking in the exterior and core parts, respectively. |
| Lateral Force Resisting System | Steel moment-resisting frame |
| Foundation Type | The core part of the building rests on a 8 ft thick tringular shaped mat foundation. The corner columns are resting on 14 ft thick individual foundation mats. |
| Remarks | -- |
