| Information for Strong-Motion Station |
| CA Long Beach - VAMC, Bldg 126 |
| NSMP Station 5106 |
| Earthquakes recorded by this station |
| |

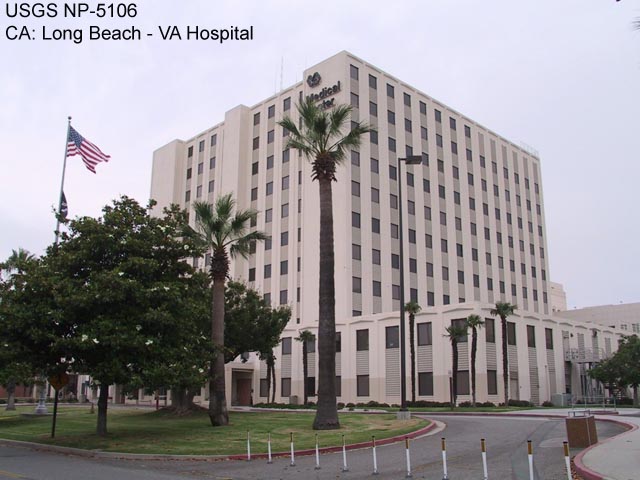

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 33.7767 N |
| Longitude | 118.1190 W |
| Elevation (m) | 24 |
| Site Geology | |
| Vs30 (m/sec) | |
| Site Class |
| No. of Stories above/below ground | 11-story reinforced concrete structure |
| Plan Shape | Rectangular |
| Base Dimensions | 197'x270' |
| Typical Floor Dimensions | 197'x270' |
| Design Date | -- |
| Instrumentation | 33 accelerometers on 4 levels in the building. 3 accelerometers at a reference free-field site. |
| Vertical Load Carrying System | Reinforced Concrete |
| Lateral Force Resisting System | Reinforced Concrete |
| Foundation Type | Columns on isolated spread footings equipped with seismic isolators |
| Remarks | This building was instrumented as part of the VA/USGS Hospital Instrumentation Project. |
